Metro and railway traction systems commonly operate from high-voltage DC or AC traction supplies depending on the railway architecture. In DC traction systems, the converter input can experience significant conducted disturbances generated by switching converters, regenerative braking and interaction with the traction network. BLA can develop high-voltage DC EMI filters, DC input filters, DC common-mode chokes and DC reactors for converter and auxiliary-power applications.

BLA's product portfolio includes DC filters and DC chokes, while its railway-specific category is specifically positioned for railway applications. The exact filter topology can be engineered according to the traction voltage, continuous current, transient current, switching frequency and required insertion loss.

Common-mode noise is particularly important in railway vehicles because the train contains extensive metallic structures that can provide unintended high-frequency current paths. High-frequency switching voltage from a traction inverter can couple through parasitic capacitances to the motor frame, bogie, chassis and protective-earth or return-current structures.

These currents can travel through unexpected paths and potentially couple into signalling, communication, sensor and control systems. BLA can use common-mode chokes, common-mode inductors, three-phase common-mode filters and ferrite suppression components to increase impedance to unwanted common-mode currents. The magnetic design must take account of high continuous current, DC bias, saturation, temperature rise and the required high-frequency impedance.

Differential-mode noise occurs between power conductors and is generated by switching currents within traction inverters, auxiliary converters, battery chargers and DC-DC converters. In a DC system, this may occur between positive and negative conductors, while in three-phase converter systems it can occur between phases.

BLA can address differential-mode interference using differential-mode inductors, DC chokes, series inductors, X capacitors and LC filtering networks. The filter is designed around the actual frequency spectrum rather than only the fundamental traction frequency. Particular attention is required to prevent unwanted LC resonance between the filter, converter and railway supply network.

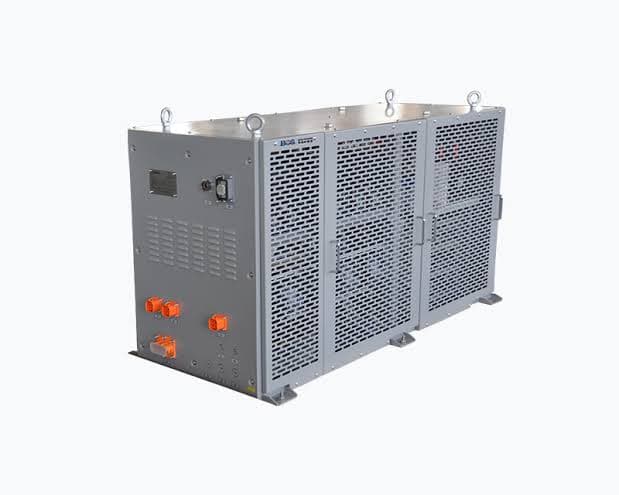

BLA maintains a dedicated Railway Specific product category and describes these products as specialized filters for high-speed railway applications, intended to address electromagnetic interference and power disturbances. This is important because railway applications impose considerably different requirements from conventional industrial equipment. A railway filter may need to operate under continuous vibration, mechanical shock, wide temperature variations, electrical transients and demanding space and weight constraints.

The filter enclosure, mounting arrangement, terminals, creepage and clearance, magnetic construction and thermal management can therefore be customized around the railway equipment rather than simply using a standard industrial EMI filter.

Three-phase auxiliary equipment such as HVAC compressors, blowers, pumps and motor-driven systems can generate substantial conducted EMI. BLA's three-phase EMI filters can be designed to attenuate both common-mode and differential-mode components.

For higher-current applications, BLA's BL-423 three-phase filter family, for example, is published across ratings from 3 A through 200 A, demonstrating the ability to address a broad range of three-phase equipment ratings. The actual railway application would require selecting or customizing the appropriate electrical, mechanical and environmental configuration rather than assuming an industrial catalogue configuration is automatically railway compliant.

Some railway auxiliary and station-side systems require filtering of three-phase power with a neutral conductor. BLA offers three-phase + neutral filtering within its EMI product range. This architecture can be important where common-mode currents or neutral-related disturbances need to be controlled across the complete supply interface.

The filter topology can be engineered to address both line-to-line differential noise and common-mode currents involving the neutral and protective-earth system.

The output of a traction inverter contains rapidly switched PWM voltage waveforms. High dv/dt can produce capacitive currents through motor insulation, motor-frame capacitance and cable capacitance. Long connections between converter and motor can further influence high-frequency behaviour because the cable becomes a distributed electrical network rather than simply an ideal conductor.

BLA can address these conditions through motor-side reactors, output chokes, common-mode chokes, dv/dt-related filtering and custom inductive assemblies. The objective is to reduce unwanted high-frequency components while preserving the required fundamental motor voltage and current.

Regenerative braking introduces another important EMC condition because the traction system changes the direction of power flow. During braking, energy generated by the traction motors is transferred back toward the DC link and potentially into the traction network or onboard energy-storage system.

This creates rapidly changing current conditions and can introduce additional transient and high-frequency components. BLA can engineer DC link chokes, bidirectional converter filters, common-mode filtering, DC EMI filters and high-current inductive components for these power-conversion stages.

Magnetic components must be designed with the actual current waveform in mind, including DC bias, ripple and bidirectional operating conditions.

Metro trains contain multiple variable-speed motor systems for ventilation, air conditioning, compressors, pumps and fans. These frequently use VFDs or compact inverter drives, making them sources of conducted and radiated EMI.

BLA's VFD filters, three-phase EMI filters, AC line reactors, output reactors, common-mode chokes and sine-wave filters can be used depending on the drive architecture. BLA's published product categories specifically include filters for VFD applications, reactors and sine-wave filters.

This creates an opportunity to control noise at the source rather than allowing switching disturbances from HVAC drives to propagate throughout the train's auxiliary electrical network.

Modern trains increasingly incorporate batteries for auxiliary power, emergency systems, energy recovery and hybrid propulsion architectures. Battery systems are connected to DC-DC converters, bidirectional converters and charging systems, all of which can generate high-frequency switching noise.

BLA can develop DC EMI filters, DC chokes, common-mode chokes, differential-mode inductors and custom battery-side filtering assemblies for these systems. Magnetic components can be designed for high current with appropriate consideration of saturation, copper losses, core losses and thermal rise.

Railway systems contain highly sensitive signalling, control and communication electronics operating alongside high-power traction converters. This creates a classic noise-source versus sensitive-victim problem. High-frequency currents from traction or auxiliary converters can couple into signalling and communication systems through common power supplies, chassis structures, cable harnesses, earth connections or electromagnetic fields.

BLA can provide signal-line EMI filters, feedthrough filters, common-mode signal chokes, ferrite cores and ferrite beads for sensitive control and communication interfaces. The filtering must preserve the required signal bandwidth and impedance while providing sufficient common-mode attenuation.

Modern metro trains contain Ethernet networks, passenger information systems, CCTV, Wi-Fi, emergency communication, displays and train-control communication networks. These systems contain high-speed digital electronics that can be susceptible to common-mode disturbances generated by nearby switching converters.

BLA can develop data-line common-mode chokes, signal filters, feedthrough filters and ferrite suppression solutions where required. The objective is to suppress common-mode interference without introducing excessive differential-mode insertion loss that could distort the communication signal.

The electrical interface between the train and the traction supply can experience substantial electrical disturbances. Pantograph contact, overhead-line characteristics, traction substations and converter switching all contribute to a complex electrical environment.

BLA can engineer input EMI filters, high-current inductors, DC chokes, AC line reactors and surge/noise suppression networks for appropriate onboard converter interfaces. These components must be designed according to the actual traction voltage, current, transient conditions and available mechanical envelope.

Ferrite technology can be particularly useful for suppressing higher-frequency components on cables without significantly affecting the normal power-frequency operation. BLA can provide ferrite cores, ferrite rings, ferrite beads and cable-mounted ferrite suppression components.

These can be applied to auxiliary power cables, control wiring, communication cables and other high-frequency noise paths. Material selection should be based on the frequency spectrum of the actual interference because ferrite impedance is strongly frequency-dependent.

Railway equipment frequently uses metallic cabinets and enclosures. Cable entry points can become unintended RF paths through which high-frequency energy enters or exits the enclosure.

BLA provides feedthrough filters and chassis-mounted filtering solutions within its broader EMI product portfolio. These can provide filtering directly at the enclosure boundary, helping prevent high-frequency noise from travelling through cables while maintaining a controlled chassis return path.

Railway converters can create not only high-frequency EMI but also lower-frequency power-quality disturbances. BLA's product portfolio includes harmonic filters, sine-wave filters, reactors and DC chokes under its power-quality category.

This allows BLA to approach railway power-electronics problems beyond conventional EMI filtering. Depending on the application, the overall solution can combine EMI suppression, harmonic mitigation, output waveform filtering and controlled inductive impedance.

BLA also offers transformer technologies including isolation transformers, control transformers, CTs and power transformers. In railway auxiliary systems, appropriately engineered transformer and filtering architectures can help provide electrical isolation between subsystems while controlling conducted disturbances.

Where galvanic isolation is required, the transformer and EMI filter should be engineered together because transformer parasitic capacitance can itself provide a high-frequency common-mode coupling path.

Railway equipment operates under considerably harsher mechanical and environmental conditions than typical indoor industrial equipment. Filters and inductive components can be exposed to vibration, mechanical shock, temperature cycling, humidity and limited ventilation. For onboard applications, size, mass and mounting are also important engineering constraints.

BLA's custom manufacturing capability allows filter dimensions, terminals, mounting arrangements, enclosure construction and magnetic components to be adapted to the customer's available space and electrical requirements. BLA emphasizes customized filter design and advanced manufacturing as part of its overall product approach.

The most effective railway EMI solution is not necessarily the largest filter. It is the filter that addresses the actual noise source, propagation path and affected circuit. BLA can analyse whether the dominant problem is common-mode current, differential-mode current, switching ripple, high dv/dt, high di/dt, converter-generated conducted emissions, cable coupling or interaction between power and communication systems.

Based on this assessment, BLA can combine railway-specific EMI filters, single-phase filters, three-phase filters, three-phase + neutral filters, DC EMI filters, common-mode chokes, differential-mode chokes, AC line reactors, DC reactors, DC link chokes, VFD filters, sine-wave filters, harmonic filters, output reactors, ferrite cores, ferrite beads, feedthrough filters, signal-line filters, inductors and transformers. This broad range is consistent with BLA's published EMI, power-quality, inductive-component and railway-specific product categories.

For railway and metro OEMs, subsystem manufacturers and integrators, BLA can develop custom EMI/EMC filters around the exact voltage, current, switching frequency, installation environment and mechanical envelope. A traction converter may require a completely different solution from an HVAC inverter, battery charger, passenger-information system or signalling interface. Therefore, BLA's ability to customize magnetic components and filter topology is particularly valuable.

The engineering objective is to achieve the required insertion loss and common-mode/differential-mode attenuation without compromising voltage drop, thermal performance, leakage current, power efficiency, signal integrity or mechanical reliability.
