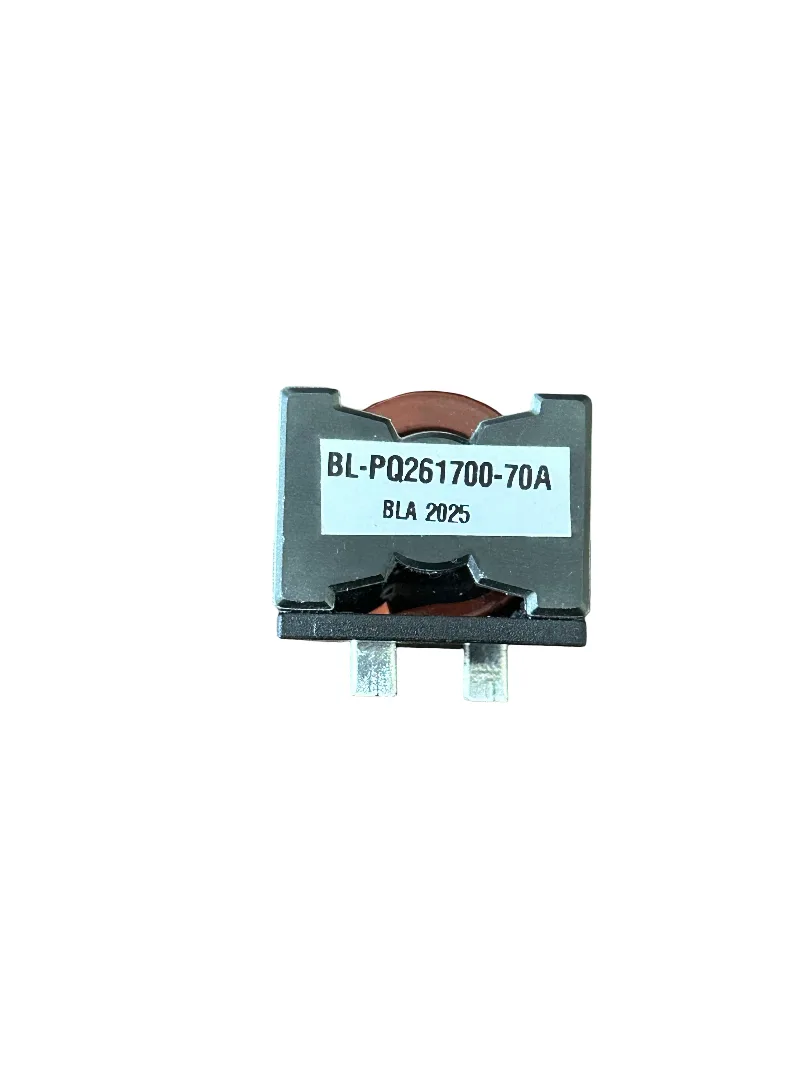

BL-PQ261700-70A
BL-PQ261700-70A

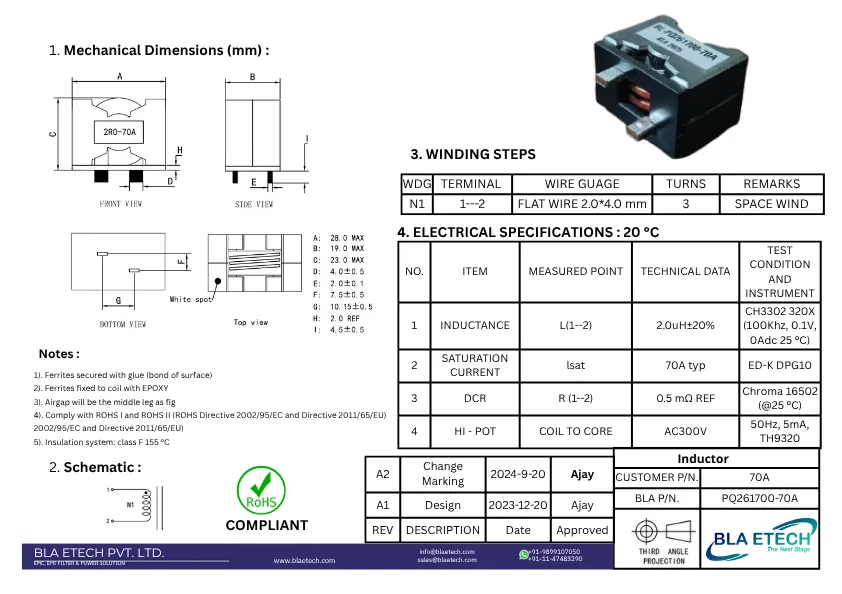

Technical Specifications:
-
Part Number: PQ261700-70A
-
Wire Type: Flat wire, 2.0 × 4.0 mm
-
Turns: 3 (Space wound)
-
Inductance: 2.0 µH ±20% @100 kHz, 0.1 V, 25 °C
-
Saturation Current (Isat): 70 A (typical)
-
DCR (Resistance): 0.5 mΩ (typical) @25 °C
-
Hi-Pot Test: 300 V AC, 50 Hz, 5 mA (Coil to Core)
-
Insulation Class: F (155 °C)
-
RoHS Compliance: Yes (RoHS I & II)
-
Mounting Info:
-
Ferrite core glued and epoxy-fixed
-
Center leg airgap
-
