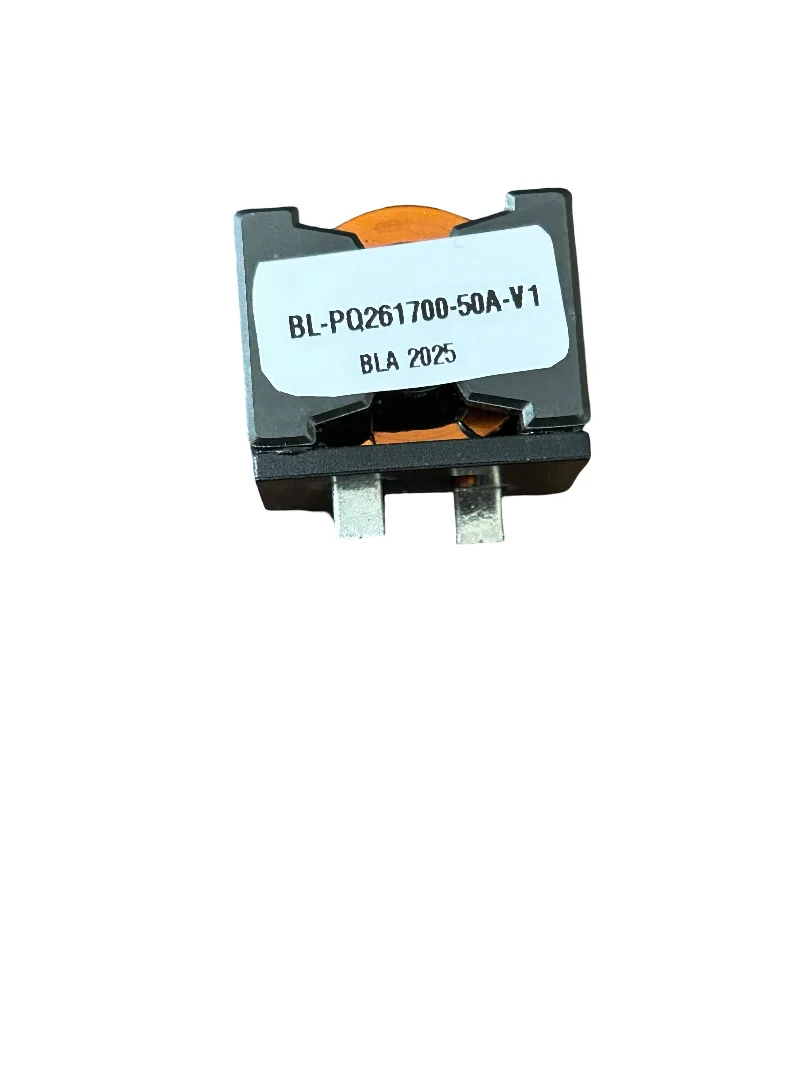

BL-PQ261700-50A-V1
BL-PQ261700-50A-V1
-
Customer P/N: 50A-v1
-
BLA P/N: PQ261700-50A
-

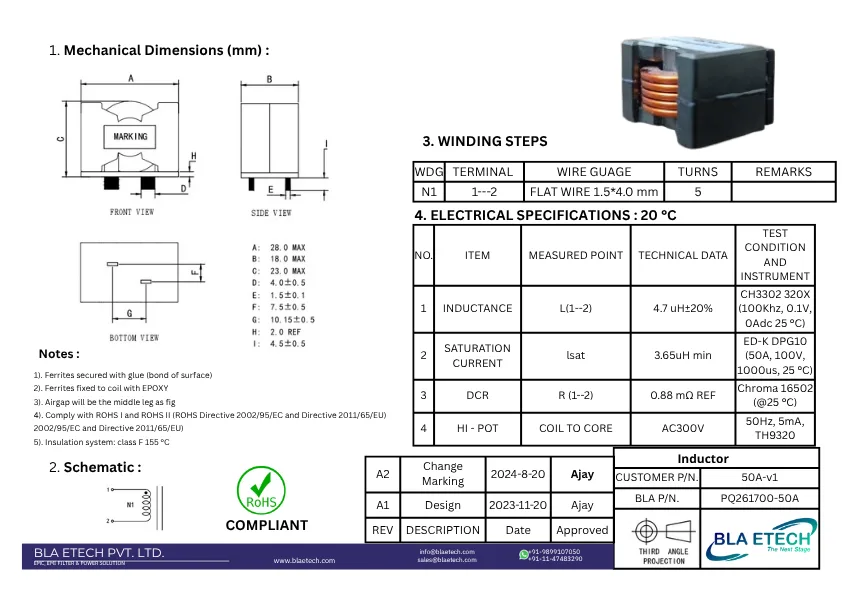

Winding:
-
Terminals: 1–2
-
Wire: Flat, 1.5 × 4.0 mm
-
Turns: 5
-
-
Inductance: 4.7 µH ± 20% @ 100 kHz, 0.1 V
-
Saturation Current: Min 3.65 µH @ 50 A, 100 V, 1000 µs
-
DCR: 0.88 mΩ @ 25 °C
-
Hi-Pot: AC 300 V, 50 Hz, 5 mA (coil to core)
-
Insulation Class: F (155 °C)
-
Compliance: ROHS I & II
-
Construction: Epoxy-fixed ferrites, center-leg airgap
