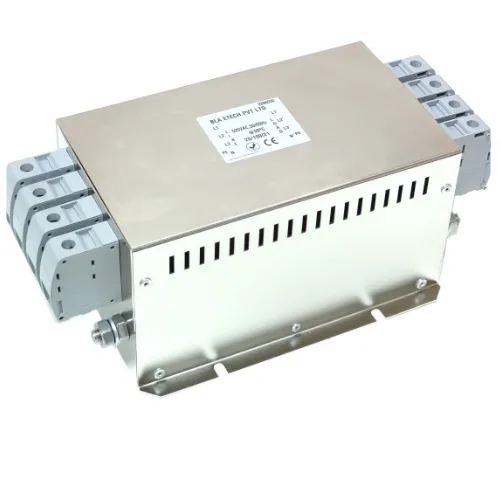

BL 460 Series
BL 460 Series
Technical Specifications:
- Voltage Rating: 3×440/300V AC, 50/60Hz
- Current Rating: 16A to 150A @ 50°C
- Operating Frequency: 50/60Hz
- Operating Temperature: -25°C to +100°C
- Protection Category: IP20
- Compliance: UL 1283, IEC/EN60939
Advantages:
- High Attenuation Performance: Exceptional EMI suppression with low leakage current
- Compact & Slim Design: Saves space, easy to install
- Versatile Applications: Ideal for motor drives, inverters, HVAC, elevators, EV chargers, UPS, and renewable energy systems
- High Overload Capability: Handles 1.5× rated current for 60 sec/hour
- Reliable & Safe: Touch-safe terminal blocks meeting EN60204-1 installation standards
