Conducted EMI is one of the most important EMC problems for appliances connected directly to the low-voltage public supply. Switching power supplies, inverter compressors, motor drives and power converters can inject high-frequency currents into the AC mains. These disturbances can travel through the household wiring and potentially interfere with nearby electronic equipment.

BLA can engineer single-phase EMI filters, differential-mode filters, common-mode filters and multi-stage LC networks for appliances operating from single-phase mains. The filter can contain combinations of common-mode chokes, differential-mode inductors, X capacitors, Y capacitors and damping components, selected according to the appliance's switching frequency, rated current and measured conducted-emission spectrum.

This is especially relevant for appliances such as refrigerators, washing machines, air conditioners, microwave ovens, induction cookers and inverter-based consumer electronics.

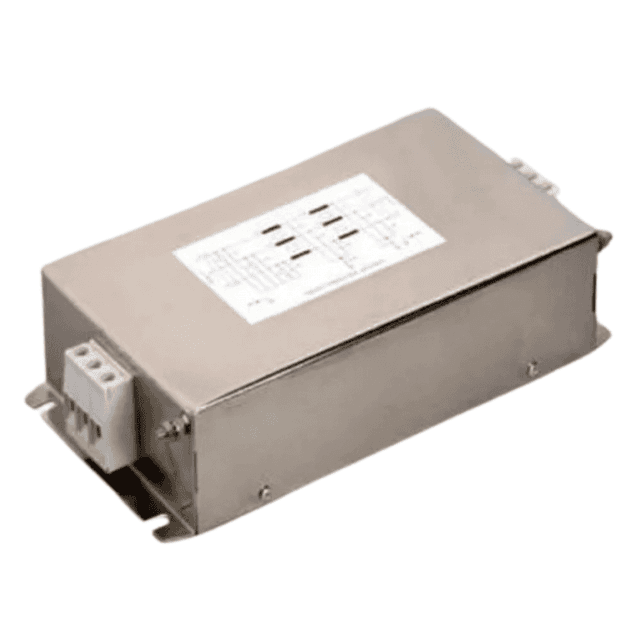

Most domestic appliances are connected to a single-phase AC supply, making compact single-phase EMI/RFI filters particularly important. BLA's single-phase filter portfolio provides a platform for developing appliance-specific input filters.

The engineering challenge is to obtain sufficient high-frequency attenuation while maintaining low insertion impedance at 50/60 Hz. The filter must also have low power loss, appropriate thermal characteristics and suitable leakage-current performance.

For a washing-machine motor controller, for example, the EMI spectrum may contain switching-frequency components and higher-frequency harmonics generated by the inverter. The input filter can be designed to suppress these components without adversely affecting the appliance's power consumption or motor-control operation.

Modern appliances increasingly use BLDC, PMSM and induction motors controlled through inverter electronics. These motor drives generate common-mode voltage because the motor terminals are exposed to rapidly changing PWM waveforms.

The resulting common-mode current can flow through motor-frame capacitance, cable capacitance, chassis structures and protective-earth connections. This current can subsequently couple into control electronics or return through the mains.

BLA can address this mechanism using common-mode chokes, common-mode inductors, motor chokes, ferrite cores and custom common-mode filtering networks. For compact appliances, the magnetic component can be customized to achieve the necessary impedance while fitting inside the limited mechanical envelope.

Differential-mode noise occurs between conductors and is generated by switching currents in inverter and power-supply circuits. In a washing machine, for example, the motor inverter can produce high-frequency current components that propagate through the appliance's DC bus and AC input. Similar behaviour occurs in inverter refrigerators and air conditioners.

BLA can control this noise using differential-mode inductors, series chokes, X capacitors and LC filtering networks. The filter can be tuned around the actual switching-frequency spectrum and the impedance characteristics of the converter.

A technically correct design must also consider filter resonance. An excessively high-Q LC filter can create a resonant peak and potentially worsen the noise at a particular frequency. BLA's customized approach allows damping and component selection to be incorporated into the filter architecture.

Modern inverter refrigerators use variable-speed compressors to improve efficiency and temperature control. The compressor motor is typically driven by an electronic inverter rather than a simple fixed-frequency supply.

This creates a direct EMI pathway from the compressor inverter back toward the AC mains. BLA can provide single-phase EMI filters, common-mode chokes, differential-mode chokes, DC filters and ferrite suppression components to reduce these disturbances.

For compact refrigerator electronics, the filter's physical size is particularly important. BLA's custom manufacturing capability allows magnetic components and filter housings to be optimized for the available space while maintaining the required electrical rating.

Modern washing machines use electronically controlled motors to achieve precise speed regulation during washing, rinsing and high-speed spin cycles. PWM switching produces rapidly changing motor voltages, which can result in both differential-mode and common-mode currents.

BLA can provide input EMI filters, common-mode chokes, motor chokes, differential-mode inductors, DC filters and ferrite suppression for these systems.

The objective is to prevent the motor-drive switching spectrum from propagating into the mains and from coupling into the washing machine's control electronics, display, sensors and communication interfaces.

Induction cooktops represent a particularly interesting EMI application because the heating process itself depends on high-frequency power conversion. High-frequency switching creates substantial electromagnetic energy in the power stage.

The appliance must therefore manage both conducted EMI and radiated electromagnetic fields. BLA can provide single-phase EMI filters, common-mode chokes, differential-mode inductors, X/Y capacitor networks and customized high-frequency filtering assemblies.

The filter design must be coordinated with the resonant power circuit because the appliance's switching frequency and power level can vary significantly during operation.

Microwave ovens combine high-power electrical systems with sensitive electronic controls. Modern designs increasingly use inverter-based power supplies rather than conventional transformer arrangements.

The inverter switching stage can generate high-frequency conducted disturbances that travel through the mains and internal wiring. BLA can develop single-phase EMI filters, common-mode chokes, differential-mode filtering and ferrite suppression for the power-input and control architecture.

Where the appliance contains sensitive digital control electronics, filtering can also be applied between the noisy power-conversion section and the control electronics.

Dishwashers, vacuum cleaners, kitchen appliances and other motor-driven consumer products can generate EMI through motor switching, brush systems, variable-speed drives and switching power supplies. Although their power ratings may be lower than industrial equipment, the electromagnetic environment can still be significant because the appliance must operate within residential electrical networks containing many other sensitive electronic devices.

BLA can develop compact single-phase EMI filters, common-mode chokes, differential-mode chokes, ferrite beads and motor suppression components for these applications.

The latest generation of appliances increasingly incorporates Wi-Fi, Bluetooth, IoT controllers, cloud connectivity, touch displays and smart sensors. This introduces an additional EMC challenge because the appliance now contains both high-power switching electronics and highly sensitive RF/digital electronics.

A refrigerator, for example, may contain an inverter compressor, SMPS, Wi-Fi module, temperature sensors and microcontroller on the same system. Switching noise from the compressor or power supply can couple into the RF or digital circuitry.

BLA can provide DC EMI filters, common-mode chokes, ferrite beads, signal-line filters, feedthrough filters and localized LC filters to isolate sensitive communication and control circuits from noisy power-conversion sections.

Modern appliances contain numerous internal DC voltage rails. A single appliance may have 24 V, 12 V, 5 V, 3.3 V and lower-voltage rails generated by switching converters.

Noise generated by one converter can propagate through the common DC bus and interfere with another subsystem. BLA's BL1220 DC EMI Filter provides a product platform specifically for DC-line filtering.

Custom DC filters can also be developed using common-mode chokes, differential inductors, ferrite components and capacitors to isolate sensitive electronics from switching power stages.

EMC in consumer appliances is not limited to high-frequency EMI. Non-linear loads can draw distorted current from the mains, creating harmonic currents. Modern appliances containing rectifiers, switching power supplies and power converters can contribute to harmonic distortion.

The current consolidated IEC 61000-3-2:2018 + AMD1:2020 + AMD2:2024 addresses limits for harmonic current emissions for equipment with rated input current up to 16 A per phase connected to public low-voltage systems. The 2024 amendment also includes changes relating to induction hobs and other cooking appliances.

BLA's broader product portfolio includes reactors, harmonic filters and sine-wave filters, allowing appliance manufacturers to address both high-frequency EMI and selected power-quality challenges where the application requires additional filtering. BLA describes its power-quality products as including harmonic and sine-wave filtering solutions.

Many modern appliances use power-factor-correction (PFC) circuits to improve input-current characteristics. Although PFC improves the low-frequency current waveform and can help satisfy harmonic-current requirements, the high-frequency switching of the PFC stage can itself become an EMI source.

This creates an important design relationship between the PFC inductor, switching device, DC bus, EMI filter and mains impedance. BLA can engineer the input EMI filter and inductive components around the PFC architecture so that the filter does not unintentionally create resonances with the converter.

At higher frequencies, ferrite cores, ferrite rings, ferrite beads and cable-mounted ferrites can provide additional impedance to unwanted noise currents. They are particularly useful where the EMI source has already been localized to a specific cable or subsystem.

BLA can select ferrite materials according to the required frequency range, current level and physical configuration. Ferrite suppression can be applied to motor cables, DC wiring, communication cables, sensor wiring and internal power connections.

Metallic appliance enclosures can also become part of the electromagnetic system. Cable entry points and openings can allow high-frequency energy to escape or enter the equipment.

BLA can develop feedthrough EMI filters, feedthrough capacitors and chassis-mounted filter assemblies where enclosure-level filtering is required. Proper bonding between the filter and the conductive enclosure is critical because high-frequency currents require a low-impedance return path.

An appliance EMI filter must achieve attenuation without creating unacceptable power losses or affecting the normal operation of the appliance. Excessive inductance can create voltage drop and heating. Excessive capacitance can increase leakage current. Poorly designed LC networks can introduce resonance. Excessive filtering on a communication line can degrade the digital signal.

BLA therefore approaches the problem as a complete electrical system rather than simply selecting a filter by current rating. Parameters including insertion loss, common-mode impedance, differential-mode impedance, resonant frequency, leakage current, thermal rise, saturation, parasitic capacitance and parasitic inductance can all be considered.

Consumer appliances are extremely cost-sensitive and space-constrained products. A filter that works electrically but occupies excessive PCB or enclosure space may not be commercially viable. This is where BLA's custom-design capability becomes important.

BLA states that it specializes in custom EMI filter solutions, with manufacturing infrastructure designed for precision production and OEM/ODM requirements. It also states that qualified projects can receive product samples, while its current published manufacturing information describes approximately one-week sample/prototype lead times and three-to-four-week production lead times.

For appliance OEMs, BLA can therefore work from the customer's electrical schematic, PCB constraints, mounting dimensions, terminal configuration, rated current, voltage and EMI test results to develop a filter that fits the actual product.

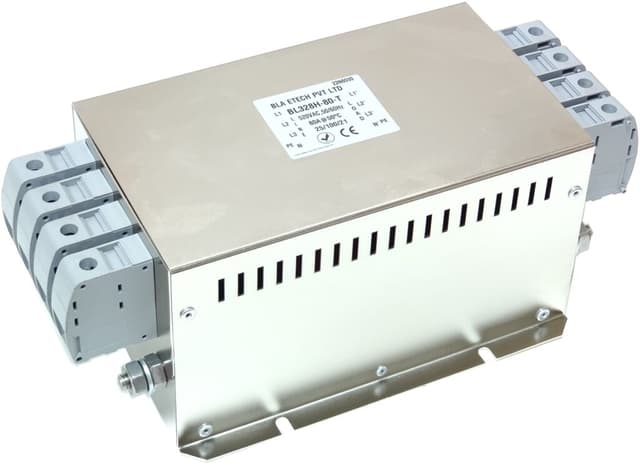

BLA's capability extends beyond a single standard EMI filter. Its published range includes single-phase EMI filters, three-phase EMI filters, three-phase neutral filters and DC EMI filters, alongside EMC/EMI chokes, reactors, transformers, harmonic filters and sine-wave filters.

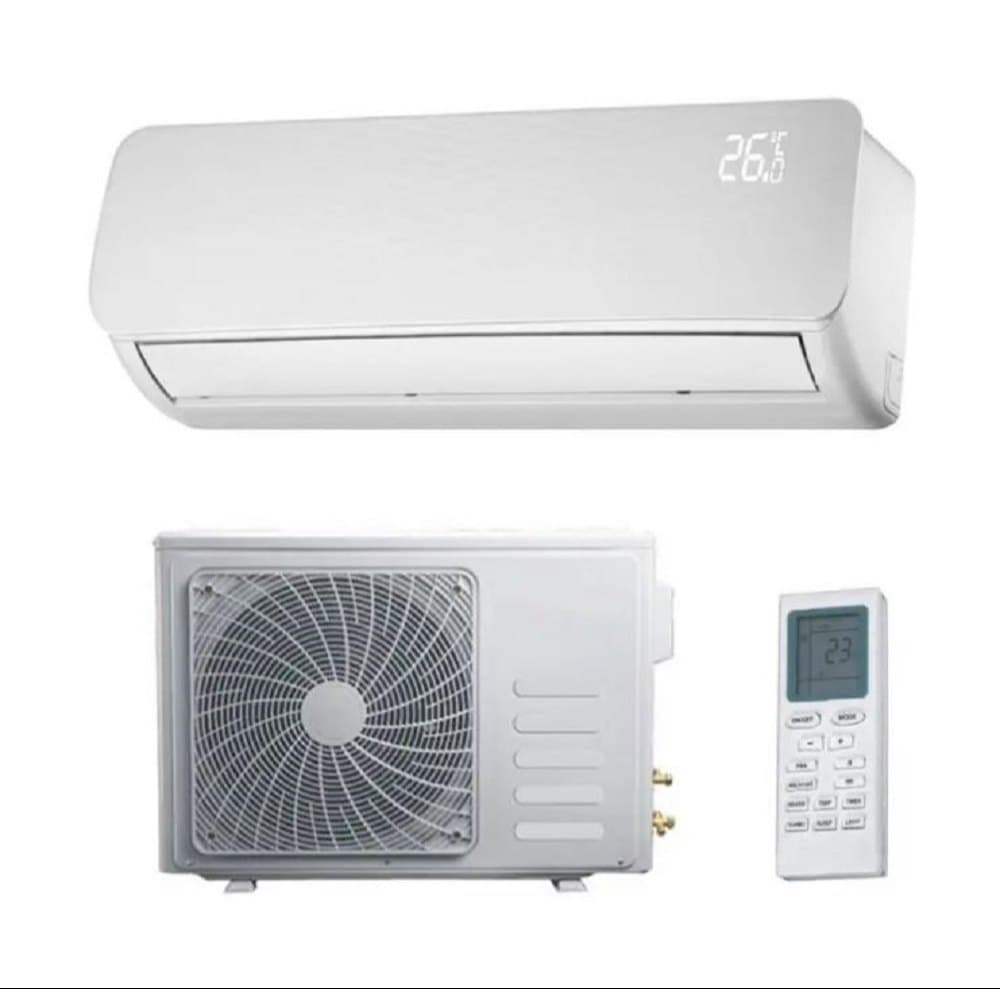

For consumer appliances, these technologies can be combined into application-specific architectures. A washing machine may require a single-phase EMI filter + common-mode choke + motor-side suppression. An inverter air conditioner may require a single-phase input EMI filter + PFC-related filtering + DC-link choke + compressor-side common-mode filtering. A smart refrigerator may require AC EMI filtering + DC filtering + ferrite suppression around the communication electronics. A high-power commercial appliance may require a three-phase EMI filter + reactor + harmonic filtering.

The strongest opportunity for BLA in the consumer-appliance sector is not simply supplying a catalogue filter. Appliance manufacturers frequently encounter EMI problems late in the product-development cycle when a prototype fails conducted-emission testing or experiences unexpected interference. BLA can work from the measured noise spectrum and failure frequency to identify whether the dominant problem is common-mode, differential-mode, switching ripple, cable coupling, PFC noise or DC-bus propagation.

The solution can then be engineered around the actual problem using EMI filters, common-mode chokes, differential-mode inductors, reactors, DC filters, ferrite components, capacitors and custom magnetic assemblies. This can reduce the need for repeated trial-and-error component changes and help OEMs move more efficiently toward EMC compliance.

For household appliances, CISPR 14-1 / EN 55014-1 is a key family of requirements for electromagnetic emissions from household appliances, electric tools and similar apparatus, while the IEC 61000 series addresses broader EMC phenomena. Harmonic-current requirements are covered by IEC 61000-3-2 for applicable equipment. The current consolidated IEC 61000-3-2 version incorporates amendments through 2024 and an interpretation sheet issued in 2025.

BLA's filter-development process can therefore be aligned with the specific EMC requirements applicable to the customer's product and target market. Importantly, the exact compliance claim should always be based on the applicable product standard, test configuration and verified test results rather than simply stating that a filter is "EMC compliant."
