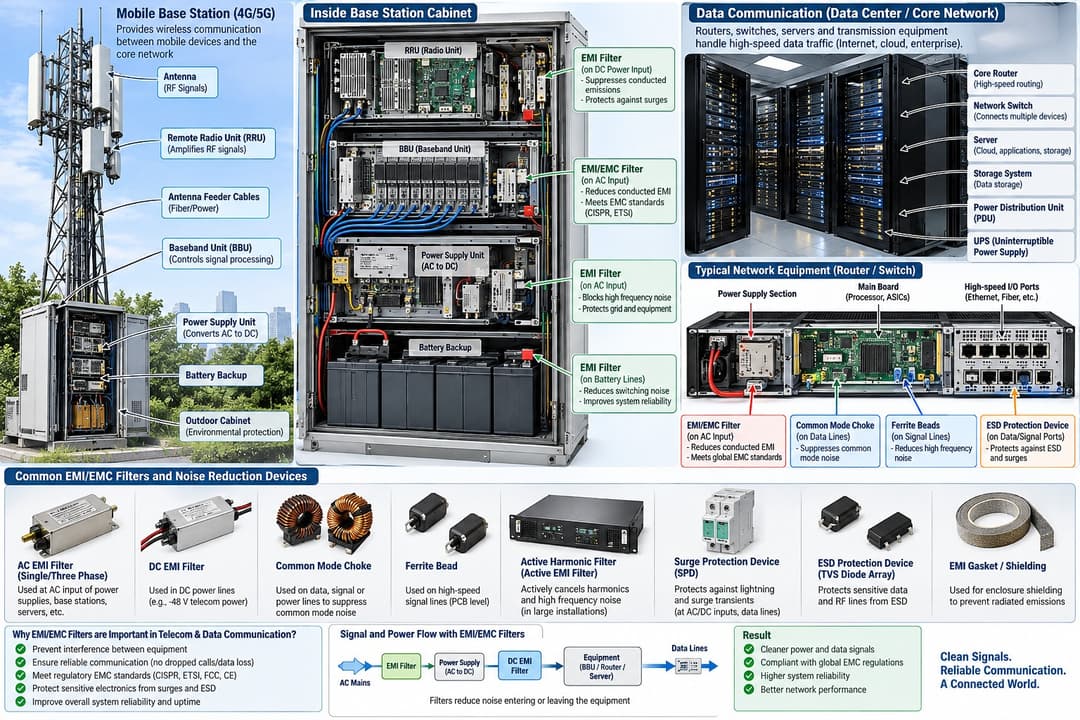

Managing EMI and Signal Integrity in Data Communication SystemsModern data communication infrastructure depends on increasingly high-speed electronic systems operating at high clock frequencies, high data rates and increasingly dense power architectures. Data centres, telecom equipment, 5G infrastructure, network switches, routers, optical-fibre communication systems, servers, storage systems, wireless base stations and edge-computing equipment all contain high-speed processors, switching power supplies, DC-DC converters, transceivers, clock circuits, high-speed interfaces and power conversion stages. These systems are highly sensitive to electromagnetic interference because unwanted noise can affect signal integrity, bit-error rate, jitter, eye-diagram performance, packet transmission, clock stability and communication reliability. BLA develops customized EMI/EMC filters, common-mode chokes, differential-mode chokes, ferrite components, DC filters, signal-line filters and other noise suppression devices to control conducted and radiated interference in data communication equipment.
Why EMI Is Critical in High-Speed Communication
Unlike conventional low-speed industrial electronics, modern communication equipment can operate with signal transitions occurring in the nanosecond or even sub-nanosecond range. A digital signal may have a relatively low fundamental repetition frequency while its fast rise and fall times contain substantial high-frequency spectral energy. Therefore, a circuit operating at hundreds of megahertz can generate significant energy at frequencies extending well into the GHz region.
The relationship between rise time and the frequency content of a digital signal means that fast edge rates, rather than only the nominal clock frequency, determine much of its EMI behaviour. High-speed processors, SerDes interfaces, Ethernet PHYs, optical transceivers and switching regulators can therefore become significant sources of broadband electromagnetic noise. BLA's filtering approach considers the actual noise spectrum, source impedance, coupling path and victim circuit instead of treating EMI as simply a low-frequency power-line problem.
Conducted EMI in Telecom and Networking Equipment
A major pathway for interference is the equipment's power architecture. Switching power supplies convert AC mains or higher-voltage DC into the multiple low-voltage rails required by processors, ASICs, FPGAs, memory, PHYs, optical modules and RF electronics.
High-frequency switching currents from these converters can propagate through:
AC input → EMI filter → rectifier/PFC → DC bus → DC-DC converter → point-of-load regulators → processor and communication circuits.Noise can also travel in the opposite direction from internal switching circuits toward the external power network. BLA provides single-phase EMI filters, three-phase EMI filters, DC EMI filters, common-mode chokes, differential-mode inductors and multi-stage LC filters to interrupt these unwanted conducted-noise paths.
Common-Mode Noise in Communication Systems
Common-mode (CM) noise is particularly important in communication equipment because high-frequency currents can flow through chassis, cable shields, protective earth and signal reference structures. Switching power supplies and high-speed transceivers can generate common-mode currents through parasitic capacitances.
For example, the switching node of a DC-DC converter can have a very high dv/dt. Parasitic capacitance between the switching node, heatsink and chassis can then inject high-frequency current into the equipment's mechanical structure. That current may subsequently couple into communication cables.
BLA can use common-mode chokes, common-mode inductors, ferrite cores, ferrite beads and common-mode signal filters to increase impedance to these unwanted currents while preserving the required power or signal path.
Differential-Mode Noise
Differential-mode noise occurs between conductors and can originate from switching currents, DC-DC converters, clock circuits and power regulators. In a DC power system, DM noise can appear between positive and negative rails. On an AC input, it can appear between Line and Neutral.
BLA can control differential-mode noise using differential-mode chokes, series inductors, X capacitors and LC filtering networks. The filter must be designed according to the converter's switching frequency and impedance environment because an LC network without appropriate damping can produce resonance and potentially amplify specific frequency components.

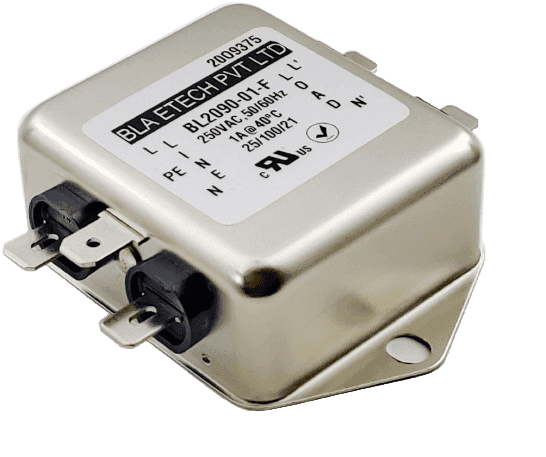

Single-Phase EMI Filters for Telecom and IT Equipment

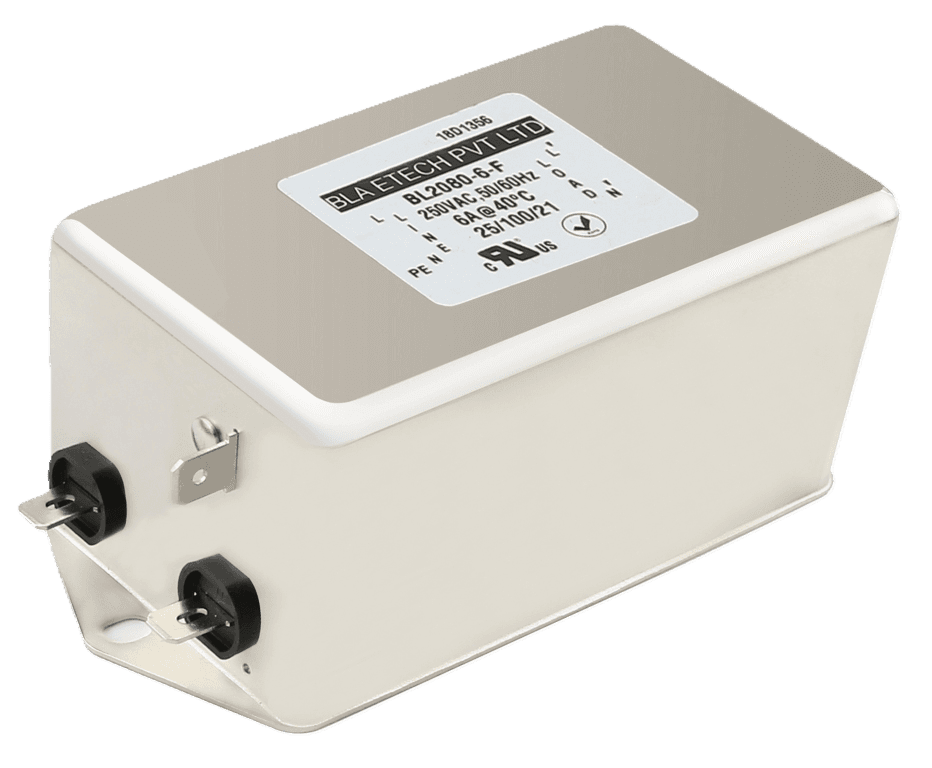

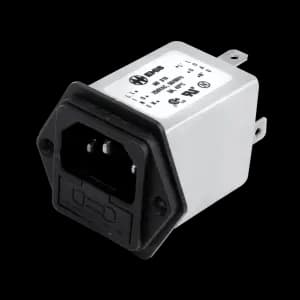

A large amount of telecom and networking equipment uses single-phase AC power. BLA can develop single-phase EMI/RFI filters for servers, network equipment, telecom power supplies, edge-computing systems, optical communication equipment and data-centre electronics.
These filters may combine common-mode inductance, differential-mode inductance, X capacitors, Y capacitors and damping elements. Filter performance can be optimized for the frequency region where conducted emissions are highest.
For high-density equipment, mechanical size and thermal performance are also important. BLA can customize the filter's construction, mounting arrangement, terminals and magnetic components to suit the equipment enclosure.
Three-Phase EMI Filters for Data Centres
Large data centres and telecom facilities increasingly use high-power three-phase electrical infrastructure. UPS systems, rectifiers, battery systems, cooling systems and power-distribution equipment can generate significant conducted interference.

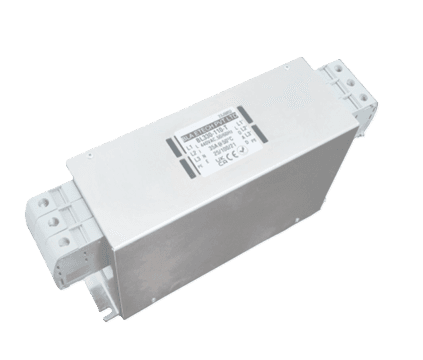

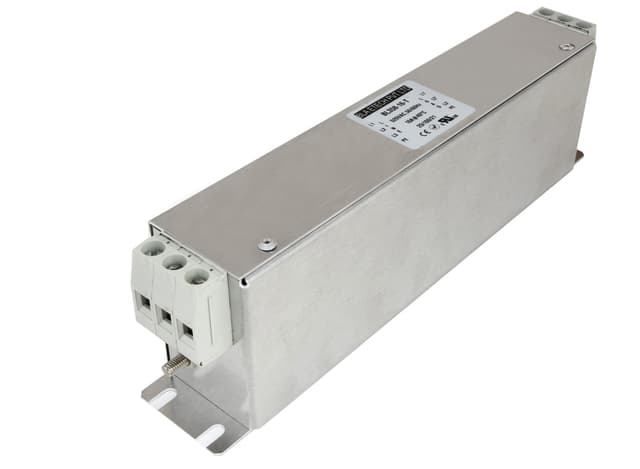

BLA provides three-phase EMI filters, three-phase common-mode chokes, line reactors and three-phase input filtering solutions for high-power communication infrastructure.
The filter can be designed according to line voltage, rated current, switching frequency, short-circuit requirements, leakage current, thermal conditions and required insertion loss.

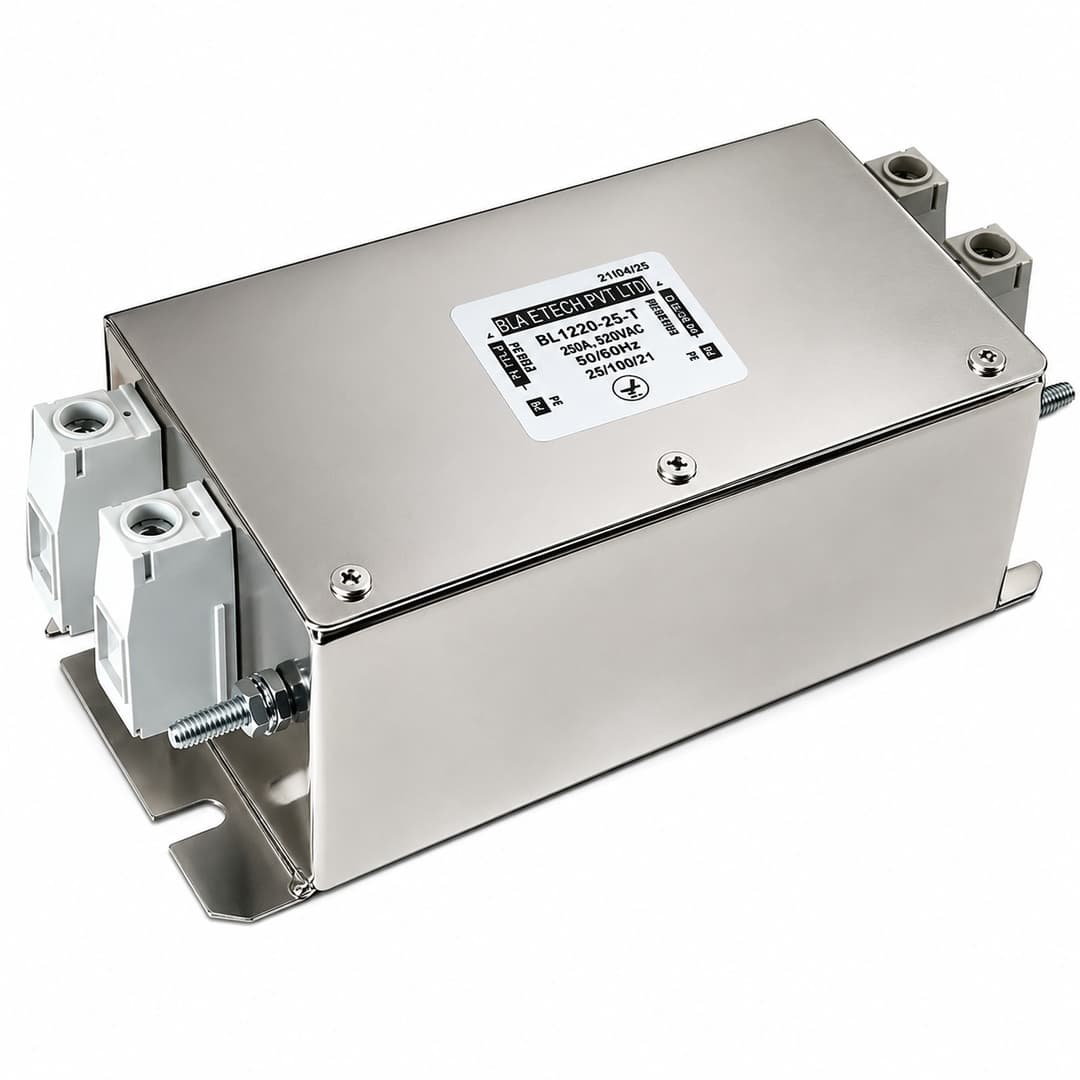

DC EMI Filters for Telecom Power Systems
Telecommunication infrastructure frequently uses DC distribution, historically including -48 V DC systems, while modern data centres and computing infrastructure may use a range of higher-voltage DC architectures.
DC converters can introduce switching noise onto the distribution bus. This noise may travel between racks or equipment through shared power infrastructure.
BLA can provide DC EMI filters, DC common-mode chokes, differential-mode inductors and multi-stage DC LC filters to isolate noisy converter stages from sensitive communication equipment.
The filter can be optimized for both the normal DC current and high-frequency attenuation requirements.
Common-Mode Chokes for Ethernet and Data Interfaces
High-speed communication interfaces are particularly sensitive to common-mode interference. Ethernet, CAN, RS-485 and other balanced interfaces rely on controlled differential signalling, but external common-mode noise can still degrade the communication environment.
BLA can provide signal-line common-mode chokes and data-line EMI filtering solutions designed around the interface's electrical characteristics.
The challenge is to suppress unwanted common-mode energy while introducing minimal differential-mode insertion loss. Excessive parasitic capacitance can also affect high-speed signals, so the component's high-frequency behaviour must be considered carefully.
High-Speed Ethernet and Signal Integrity
At high data rates, EMI filtering cannot be designed independently from signal integrity.
Parameters such as:
insertion loss, return loss, common-mode rejection, differential-mode insertion loss, characteristic impedance, parasitic capacitance, parasitic inductance, group delay and signal attenuation
can directly affect the communication channel.
For example, a filter that provides excellent common-mode attenuation but introduces excessive differential-mode capacitance may distort a high-speed data waveform.
BLA therefore approaches signal-line filtering with the objective of maintaining the required bandwidth and impedance characteristicswhile suppressing unwanted common-mode and high-frequency interference.
Power Supply Noise and DC-DC Converter Filtering
Modern networking equipment contains multiple switching regulators. A single system may contain several conversion stages:
AC-DC → intermediate DC bus → isolated DC-DC → POL converter → low-voltage processor rail.
Each conversion stage can introduce switching ripple and high-frequency noise.
BLA can develop input EMI filters, output LC filters, common-mode chokes, differential-mode inductors and ferrite suppression components for these individual stages.
Multi-stage filtering can be particularly useful when noise from one converter is propagating through the common DC bus into another sensitive subsystem.
Ferrite Cores and Ferrite Beads for High-Frequency Noise
At higher frequencies, ferrite cores, ferrite rings, ferrite beads and cable ferrites can provide significant impedance to unwanted noise currents.
BLA can select ferrite material according to the required frequency range and application. Ferrite components can be used on:
- DC power cables
- AC power cables
- Ethernet cables
- control cables
- communication harnesses
- RF-related wiring
- internal PCB power connections
The objective is to attenuate high-frequency noise without unnecessarily affecting the desired DC or data signal.
Optical Communication Systems
Although optical fibre itself is immune to electromagnetic interference, the electronic equipment surrounding the optical interface is not.Optical transceivers, laser drivers, receivers, switching regulators, clock circuits and processing electronics can all generate or receive EMI.
BLA can provide DC EMI filters, common-mode chokes, ferrite components and signal-power filtering for the electronic portions of optical communication equipment.
Particular attention can be given to high-frequency power noise affecting optical transceiver modules and clock/reference circuits.
RF and Wireless Communication Equipment

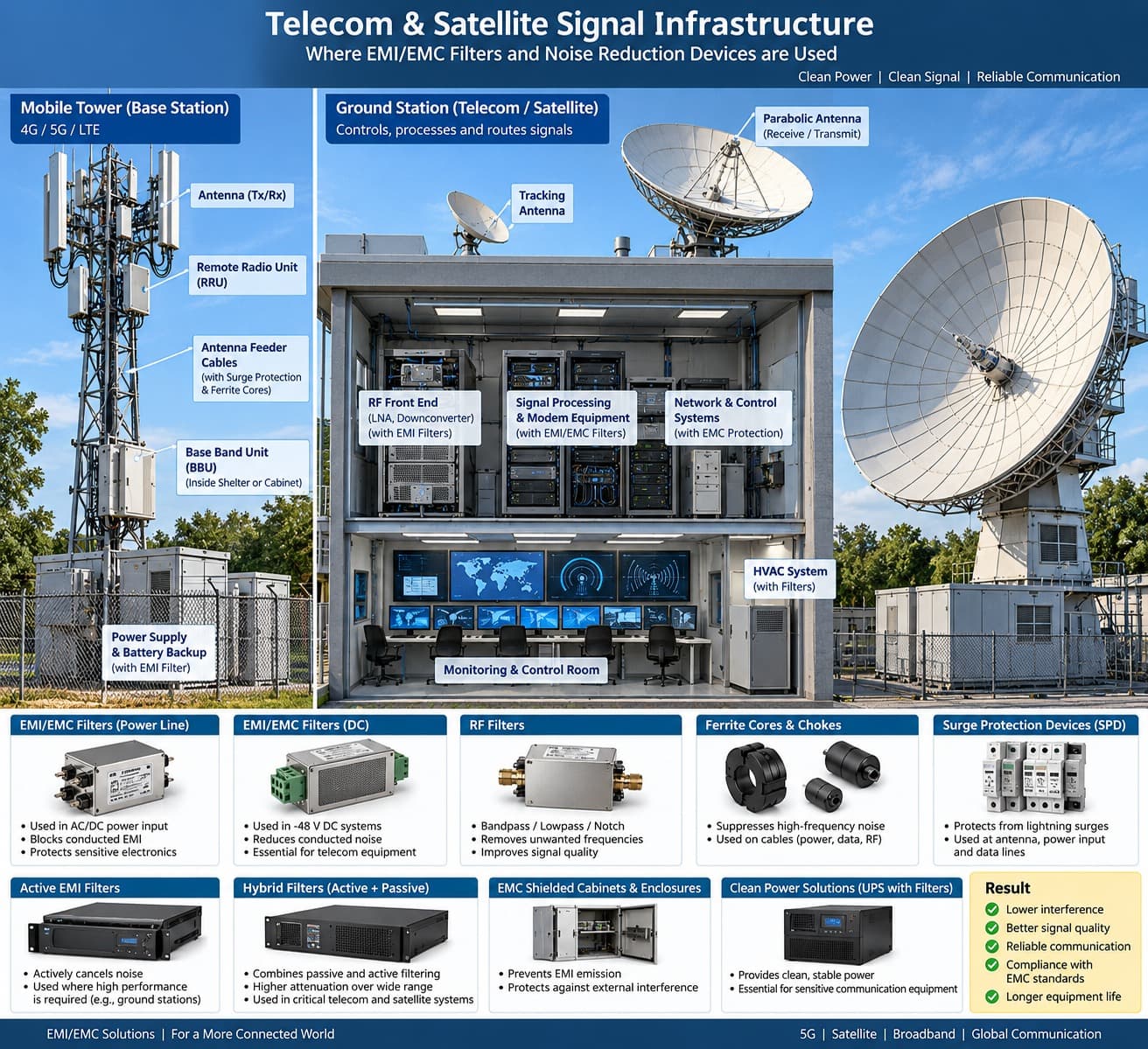

5G base stations, wireless access points, radio units and RF communication systems combine high-speed digital processing with RF power amplification and high-frequency circuitry. Switching power converters can introduce broadband conducted noise that may couple into RF sections.
BLA can provide AC EMI filters, DC EMI filters, common-mode chokes, differential-mode inductors, ferrite suppression and customized feedthrough filters to reduce conducted noise entering sensitive RF electronics.
Where RF emissions are involved, filtering must be coordinated withshielding, grounding, enclosure bonding and cable management.

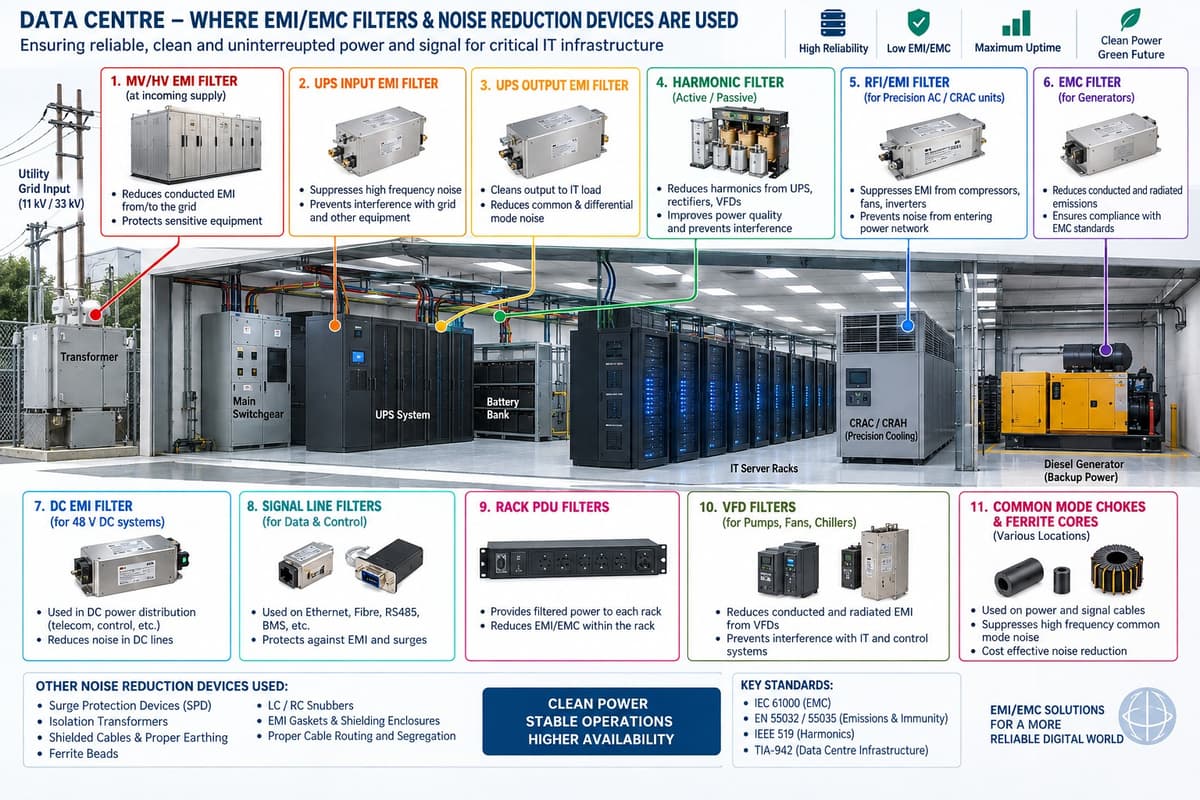

Data Centres and High-Density Electronics
Data centres present a unique EMI environment because large numbers of servers, storage systems, networking devices and power-conversion systems operate simultaneously within a confined space.
Multiple switching supplies can create cumulative conducted and radiated noise. Shared power distribution can allow disturbances generated by one system to propagate into another.
BLA can engineer rack-level EMI filters, power-entry filters, DC filters, common-mode chokes, line reactors and customized noise suppression assemblies to control these propagation paths.
Feedthrough Filters and Chassis-Level EMI Control
For communication equipment requiring high-frequency enclosure protection, feedthrough capacitors and feedthrough EMI filters can be installed directly at cable entry points.
This creates a controlled RF boundary between the internal electronics and external environment. Correct mechanical bonding between the filter and metal enclosure is critical because the high-frequency return path must have very low impedance.
BLA can develop customized chassis-mounted feedthrough filters, connector filters and filtered terminal assemblies according to the equipment's mechanical configuration.
Shielding, Grounding and Filter Installation
An EMI filter cannot be considered independently from the physical installation. At high frequencies, even a short conductor can introduce significant inductance. If the filter's high-frequency return path is long or poorly bonded to the chassis, its actual attenuation can be substantially lower than its laboratory insertion-loss specification.
BLA therefore considers filter placement, chassis bonding, cable routing, shield termination, grounding architecture and separation between noisy and sensitive circuits when developing an EMI solution.
The fundamental EMC principle is to control the complete:
Noise Source → Coupling Path → Victim Circuit
relationship.
Measuring and Engineering EMI Performance
For demanding communication applications, filter development can be based on measured frequency-domain behaviour. Parameters such asconducted-emission level, insertion loss, common-mode impedance, differential-mode impedance, resonant frequency, attenuation slope and parasitic behaviour can be evaluated to select the appropriate filter topology.
This allows BLA to move beyond simply specifying a filter by voltage and current rating and instead engineer the filter around the actual interference problem.
Customized EMI/EMC Solutions from BLA
BLA can develop customized solutions combining single-phase EMI filters, three-phase EMI filters, DC EMI filters, common-mode chokes, differential-mode chokes, AC line reactors, DC reactors, DC link chokes, LC filters, ferrite cores, ferrite beads, X/Y capacitors, signal-line filters, data-line common-mode chokes and feedthrough filters.
The appropriate combination depends on whether the dominant problem isconducted EMI, common-mode current, differential-mode ripple, switching noise, signal coupling, power-supply noise or high-frequency cable radiation.
The objective is to achieve the required noise attenuation without compromising signal integrity, bandwidth, power efficiency, thermal performance or system reliability.
BLA — Advanced Noise Suppression for Data Communication
Reliable data communication requires more than high-speed processors and advanced protocols. It requires a controlled electromagnetic environment in which power electronics, digital electronics, RF circuits and communication interfaces can operate without unwanted interference.
From telecom infrastructure, 5G equipment, servers and data centres to network switches, routers, optical communication systems and edge-computing equipment, BLA provides customized EMI/EMC filters and noise suppression components engineered around the actual electrical and frequency-domain characteristics of the system.
